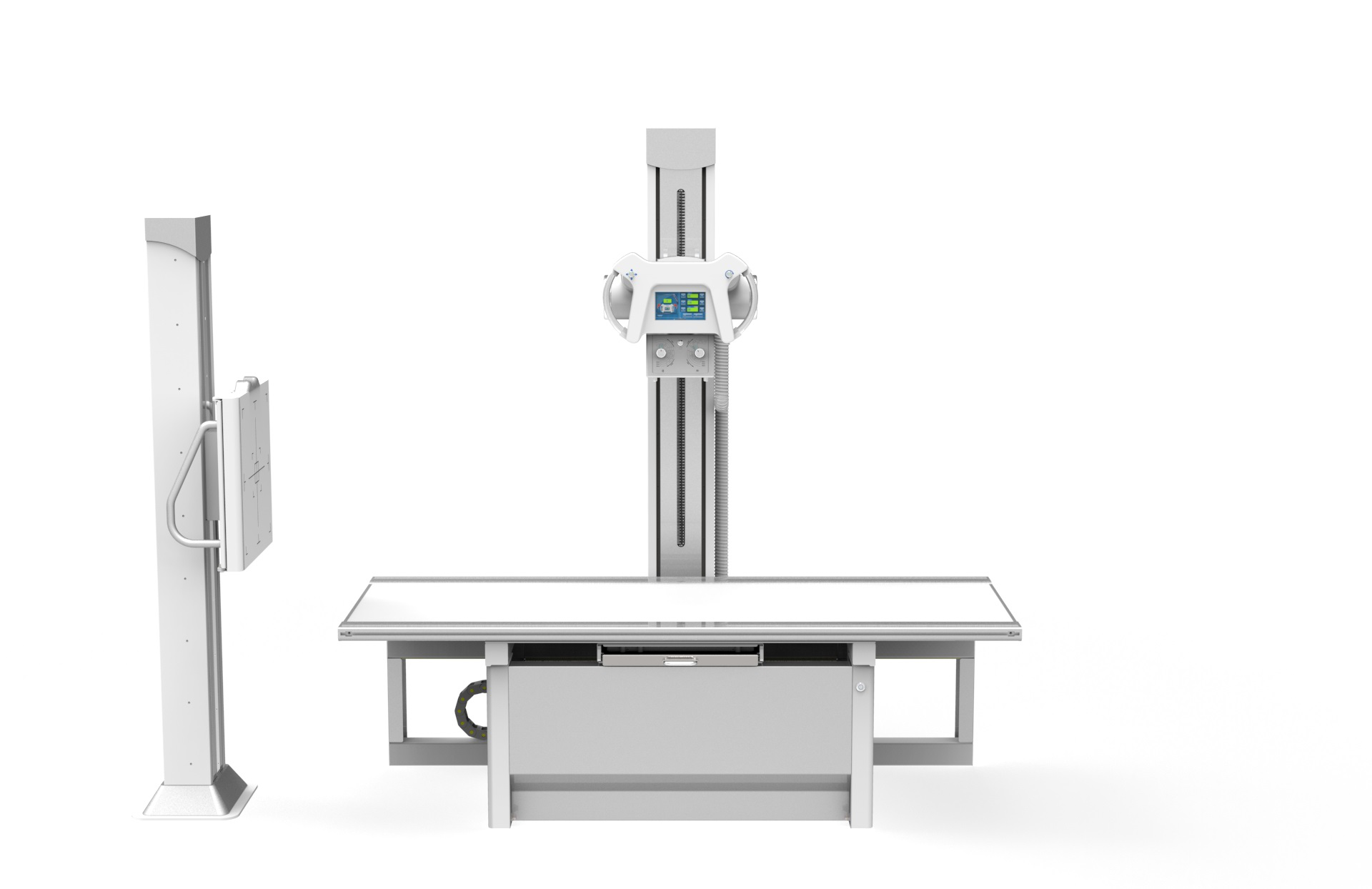

MAIN CHARACTERISTICS
1, Single-table/single-tube
2, Rotary anode X-ray tube unit and tangential annular tube head
3, Single-phase full wave rectification high-voltage generator
4, Power voltage(v) radiograph kilovolt (KV).step-less control electric mechanism
5, Filament stabilizer for X-ray tube unit and space charge compel mentor
6, Radiography volume KV ,mA and S. grading and interlock protection
7, Adopt digital circuit timer. Grading according to R10 priority coefficient,(for more accurately controlling time)
8, HT primary, the zero controlled circuit of silicon-controlled rectifier of heavy power
9, Radiographic table can move in length an breadth
10,The radiographic table. Column and vibrating grid are in a whole without ceiling and floor rails
Main Specification
Power supply | Voltage,Frequency | 380V±10% 50HZ /60Hz±0.5Hz |
Intemal resistance | 2Ω(380V) 0.6 | |
Adjustable range | 380±10% Three Phases | |
Radiography | Tube Voltage | 40-125KV |
40-125KV being adjustable continuously | ||
Tube current | 1-320mA | |
Exposure time | 0.04~6.35s 23grades together grading a according to R10 coefficient | |
High-voltage generator | Thermal Capacity | 20KVA(instantaneous) |
Max DC output voltage | 125KV | |
Max DC output current | 320mA | |
X-Ray tube | Model | XD51.20-40/125 |
Focus | Small focus 0.6mm big focus 2mm | |
Radiographic table | Length×width×height of bed surface | 2100mm×825mm×650mm |
Moving range of bed surface | 850mm in Length,250mmin breadth | |
Ray-filter of table | Travel in length ≥500mm | |
Grid density N=28 | ||
Convergence distance f.=2500px | ||
Grid ratio r=8 | ||
Column of X-ray tube unit | Moving Longitudinally along Radiographic table | 1800mm |
Distance to friend as moving up and down (along column) | 650~1800mm | |
Rotary around the center of cross arm | ±180° | |
Rotary around the shaft line of X-ray annular tubes | -10°~60°~ +120° | |
Max size of cassette | 356mm×432mm (14″×17″) | |
