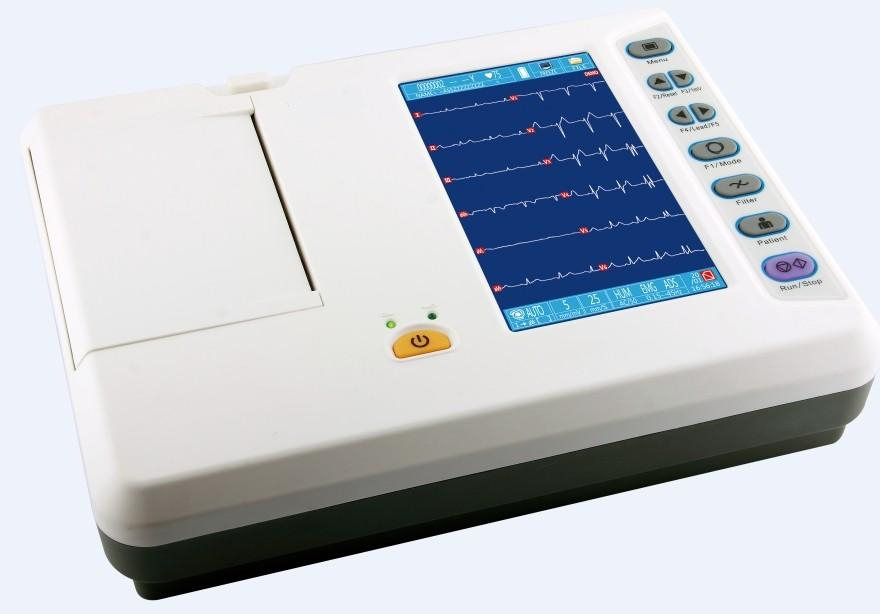

KRE-806 SIX Channel ECG Machine With Color Screen
Specification:
- Compact in size, easy and direct operation, portable
- Accurate pacing pulse identification and automatic analysis function.
- Four working modes: Manual / Auto / Physical Examination / Storag
- 112mm, 6 channel format recording
- Freeze function: can replay 12 seconds cardiograph front and back
- Fast ECG test under the [Physical Examination] ,saving power and paper
- Store and replay cardiograph without printing parameters and diagnosis under the [Storage] Mode .
- 7''800×480 graphic 7 inch touch screen, fast input patient information
- Adapt to 110-230V, 50/60Hz AC power supply.
- Built in rechargeable Li-ion battery.
- 12 lead waveforms view with 250 patient information storage (Extendable).
- Built-in USB,RS232 interface , EXGNET software optional
- USB interface for net transmission ,USB flash disk and USB printer.
Technical Specification
Lead |
Standard 12 leads |
Time constant | ≥3.2s |
lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequencyresponse | 0.05～160Hz(-3db) |
Work mode | MAN、AUTO、ANALYSIS Modes | Noise level | ＜15μVp-p |
Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) |
Inter-channel Interference |
≤0.5mm |
CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5，10，20, 40, Auto (mm/mV) |
Input circuit | Floating; Protection circuit against Defibrillator effect |
Recording mode | Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format |
Input Impedance | ≥50MΩ | Paper speed | 6.25、12.5、25、50mm/s（±3％） |
Input circuit current | ≤0.05μA | Paper | 112mm*20 roll paper Roll Paper |
Patient current leakage | ＜10μA | Communication | RS232/ USB port |
Calibrating voltage | 1mV±2％ |
Power Supply | AC 110-230V(±10%),50/60Hz（±1Hz),60VA DC Built-in rechargeablebattery,14.4V(2000mmAh) |
Voltage tolerance | ≥±500mV | Dimension/Weight | 300mm×230mm×72mm/2.8Kg |
