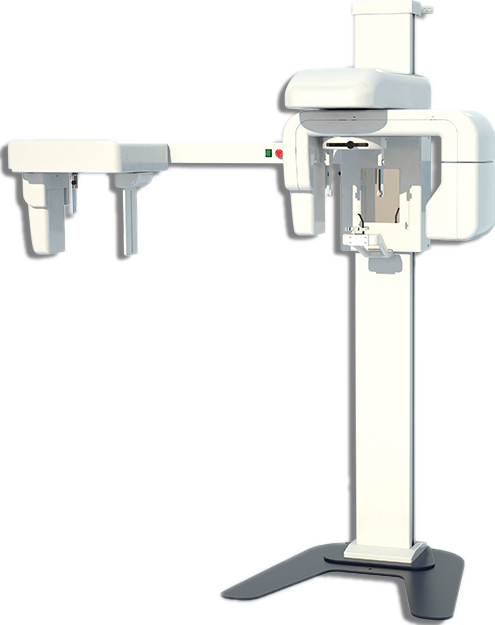

Dental High Frequency Panoramic X-ray Equipment
X digital panoramic X-ray machine is a new product developed by our company, the innovation of digital products to achieve image based on Simulation of high frequency panoramic machine and save time and film developing human labor, avoid the influence of the chemical reagents on the human body and the environment, save the film and film agent and other consumables cost, realize remote the transmission of digital information, timely imaging speed shorten the doctor's diagnosis, improve the sensitivity of the receiver on the X-ray digital imaging principle, greatly reduce the radiation dose to the patient and the doctor can absorb, ensure the operation and safety of patients, panoramic and head positioning using universal detector, reduce cost. The product functions, to achieve complete, standard heat, panoramic panorama, children's area of temporomandibular joint (TMJ), standard head imaging and other functions, the technical indicators have reached the level of similar foreign products, the structure is simple and practical in international standards models. The product has been applied to the State Intellectual Property Office of the 5 patents, of which 2 were authorized.
Technical parameter
Name: Oral high frequency panoramic X ray machine
Tube voltage: 60-88kV
Tube current:
Panoramic photography 4~12mA
Skull photography 10/12/15mA
Photography mode:
Manual
Rectifier mode
High frequency DC frequency 60~80kHz
Power Supply: AC220V/110V 50/60Hz 2.5kVA
X ray tube: Toshiba X ray tube ball D-054SB
Focus: 0.5mm * 0.5mm
Total filtration: More than 2.5mmAl
Magnification: 1.30 - 1.25 times
Time of exposure:
Adult panoramic photography for 15 seconds
Children's panoramic photography 12 seconds
Skull Photography 4 seconds /8 seconds
Temporomandibular joint 3 * 4 seconds
Panoramic photography:
Adult / child
Temporomandibular joint photography
Four split photography
Lift mode
Electric lift
size: 1880 * 881 * 2045 (mm)
weight: About 180kg
